Concrete Batching Plant - - Hamac Machinery

Container type concrete batching plant

Type:

Container type

Characteristic:

Quick installation

Model:

HZS Series

Type:	Container type
Characteristic:	Quick installation
Model:	HZS Series

Product characteristics

Container Type mobile concrete batching plant innovative device was designed for the production of all types of concrete, mixed cements, cold regenerations and inertizations of materials mixed with resin additives. The design includes multiple containers that separately transport all the elements necessary for the production of concrete, or any other mixture, at the specific job site. In this way, the operator can produce exactly what he wants, where he wants and in the quantity he wants through the use of an on-board computer. Once production is started, the various components enter the mixer in the required doses and the finished mixed product comes out continuously ready for final use.

1. Little land consumption;

2. Quick installation, taking just 2-4 days to complete installation of the whole equipment;

3. Implemented with hoist to move material upward, special design of hopper and rails, ensuring efficient storage and discharge of aggregate;

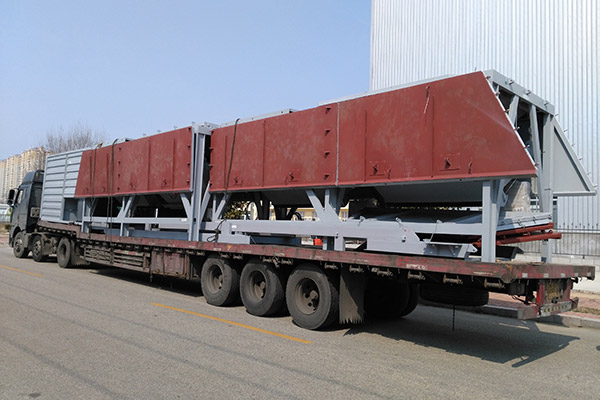

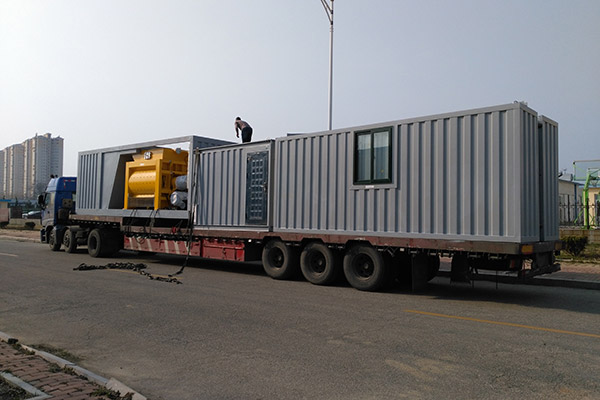

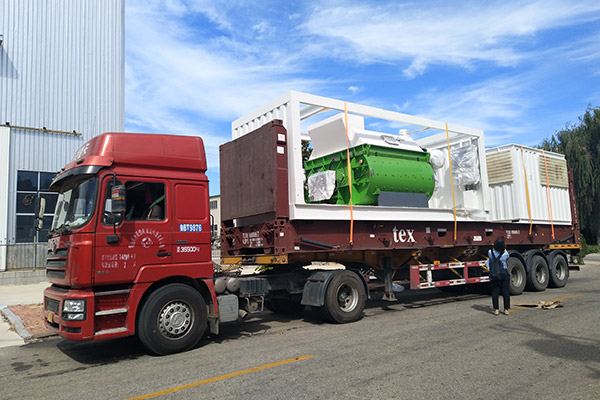

4. Main body of the equipment is placed on a steel framework, which makes it convenient to put it in trailer for transport. Moreover the steel framework could serve as part of fundament, reducing construction of foundation;

5. Mixing platform, dosage platform and lifting platform enjoys as much space as that of stationary plant, ensuring convenient operation. Commissioning and maintenance space; There would be enough work space even when the plant is fitted with external covering.

Model parameters

Technical data	Model
Technical data	HZS90	HZS120	HZS180(150)	HZS240(200)
Theoretical capacity(m³/h)	90	120	180(150)	240(200)
Mixer model	JS1500	JS2000	JS3000	JS4000
Batching system	PLD2400	PLD3200	PLD4800	PLD6400
Discharging height (mm)	4100	4100	4100	4100
Maximum aggregates size(mm)	60(80)	60(80)	60(80)	60(80)
automatic Cycle time(s)	60	60	60(72)	60(72)
Weighing Precision of Aggregate	±2%	±2%	±2%	±2%
Weighing Precision of Cement	±1%	±1%	±1%	±1%
Weighing Precision of Water	±1%	±1%	±1%	±1%
Weighing Precision of Additive	±1%	±1%	±1%	±1%
Total power(KW)	145	175	215	295
