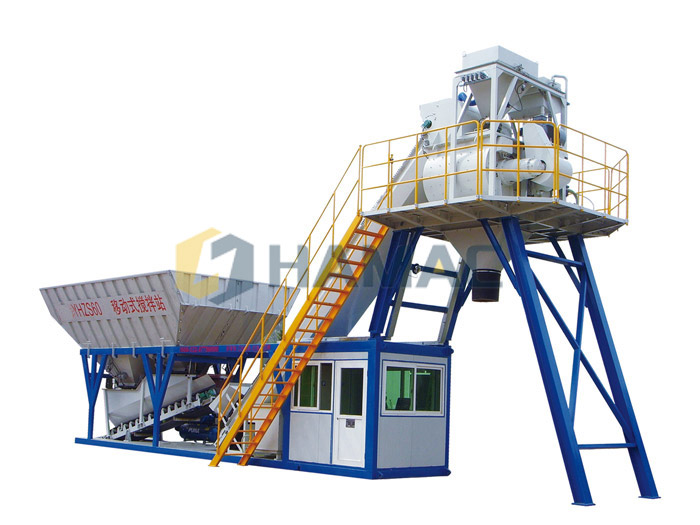

Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Modular Concrete Batching Plant
Product characteristics

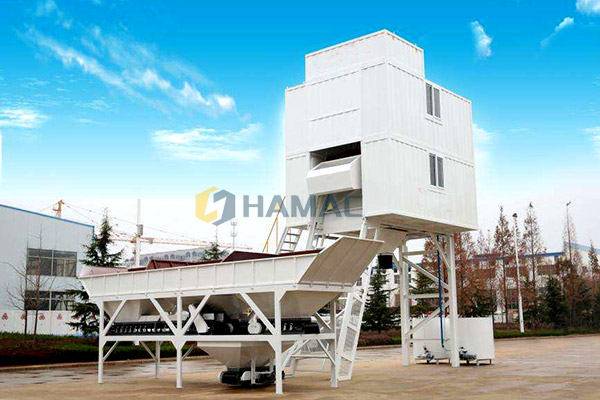

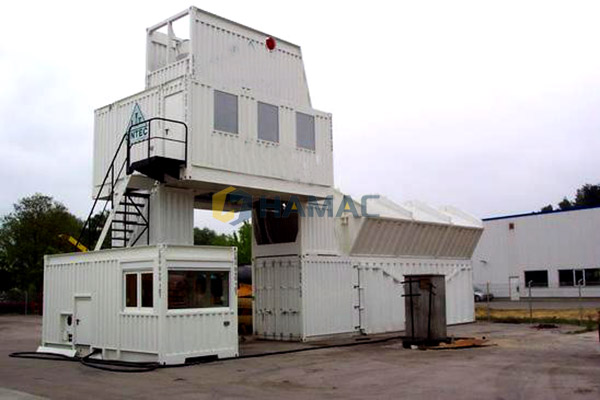

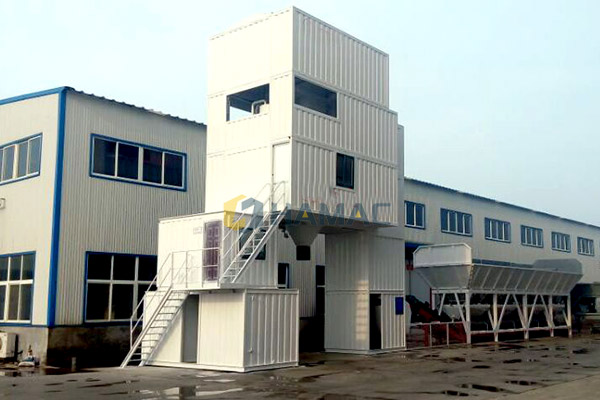

The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering.

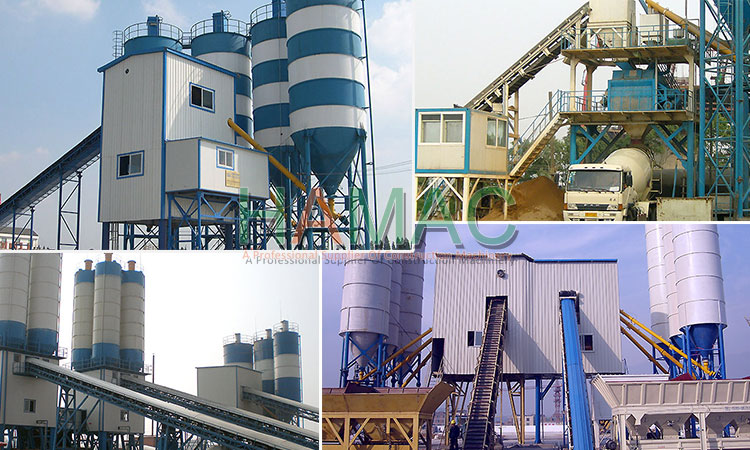

Clients' Working Site

Modular Concrete Batching Plant

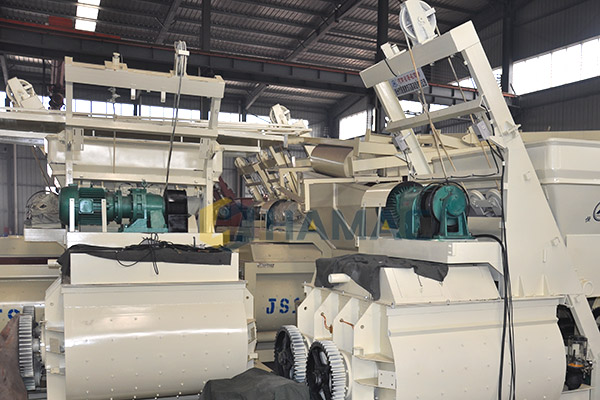

1. Adopt twin-shaft compulsory concrete mixer as the assorted mixer, which has obvious characteristics like fast mixing, wide mixing range and good quality concrete, etc to satisfy the customers' requirement.
2. Adopt the technology of “click to supplement”, to ensure the accuracy of dynamic measurement no more than ±1%.
3. Adopt additive weighing scale pneumatic conveying equipment, applied for national patent, to measure and convey additives, which completely avoid the quality accident caused by the failure of additive system.
4. Assemble two suits operating devices(touch-screen and computer), and can be operated manually, semi-automatically and automatically, which ensures the working reliability.
5. The fully accounted concrete technology enable perfect functions like: unique ratio deposit, self compensation of aggregates drop, scale-owing, alarming and revising of over-scale, on-line modifying formula, data saving and query, and report-print and so on.
6. Use pre-debugged air plugs to ensure quick installation and commissioning.
Model parameters
Item Type
YHZS60 YHZS90 YHZS120 YHZS180
Theoretical Productivity(m³/h) 60 90 120 180
Mixer JS1500/1000 JS2250/1500 JS3000/2000 JS4500/3000
Batching System PLD1600 PLD2400 PLD3200 PLD4800
Discharging Height(mm) 4000 4000 4200 4200
The Max. Diameter of the Aggregates(mm) 60(80) 60(80) 60(80) 60(80)
Transportation Dimension(L×W×H)mm 17500X2300X4300 / / /
