Modular Stabilized Soil Batching Plant

Type:

MODULAR STABILIZED SOIL BATCHING PLANT

Characteristic:

Modular design

Model:

MWC Series

Type:	MODULAR STABILIZED SOIL BATCHING PLANT
Characteristic:	Modular design
Model:	MWC Series

Product characteristics

Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.The modular stabilized soil mixing plant equipped with the industrial micro-programmed system has various advantages like even mixing, high productivity, multiple gradation, high modularization as well as easy installation, debugging and maintenance. This equipment is widely applicable to the construction of foundations of all kinds of high-grade roads, airports and so on. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.

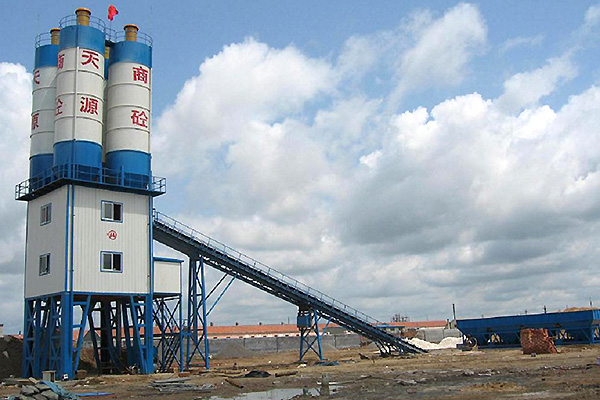

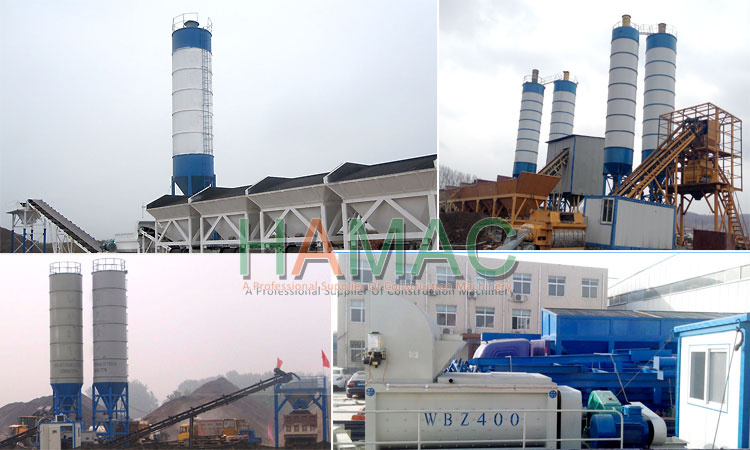

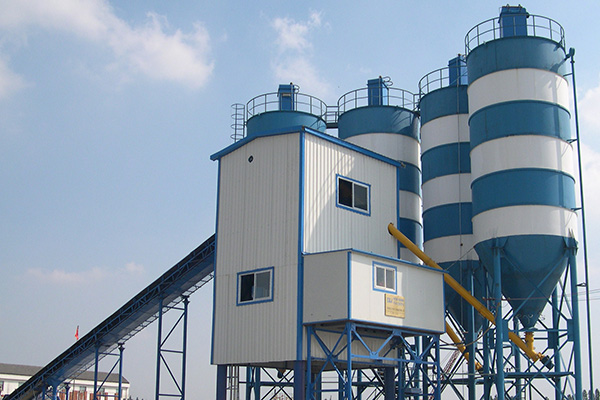

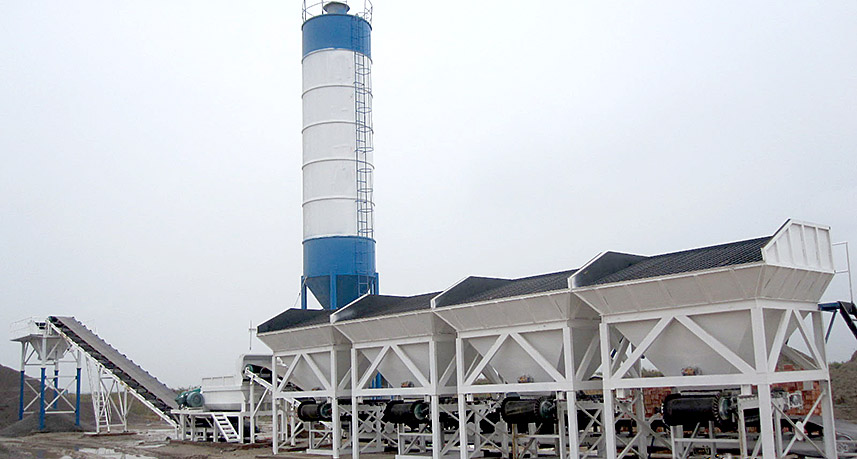

Clients' Working Site

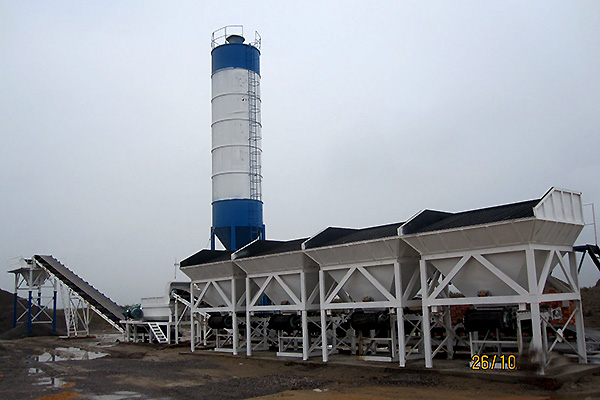

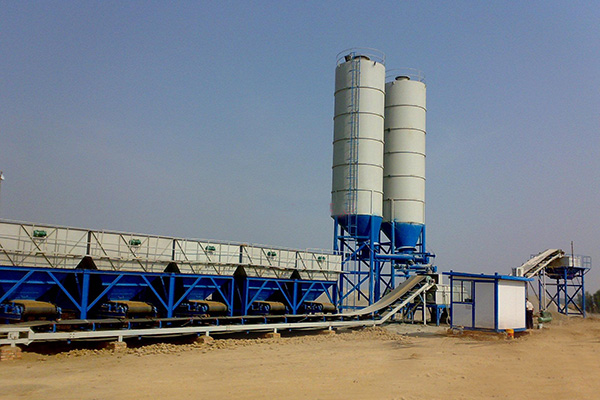

Modular Full-weighing stabilized soil Mixing station

1. easily disassembled and assembled, save time;
2. operate easily, maintain conveniently;
3. higher capacity and efficiency;
4. matching ratio accurate, mixing uniformly; weighing automatic;

Model parameters

Model	MWCB300	MWCB400	MWCB500	MWCB600

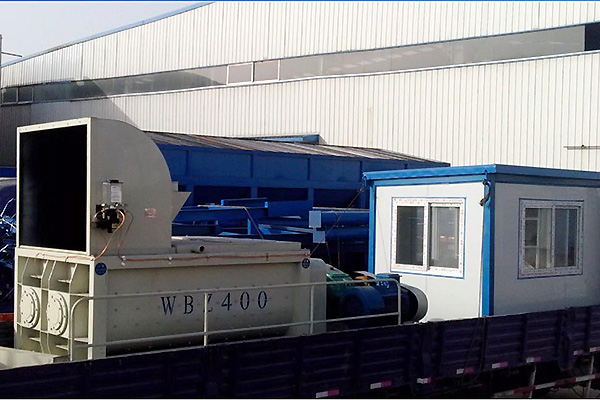

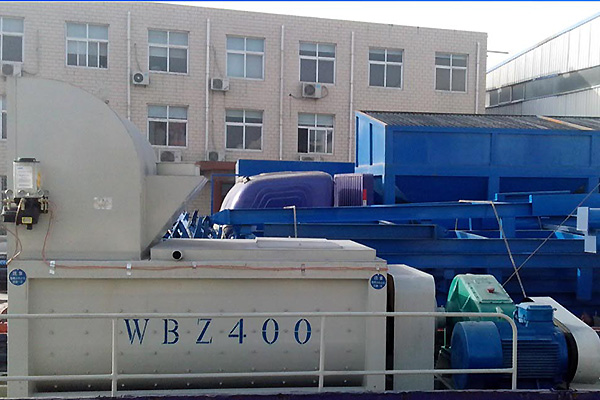

Type	twin-shaft compulsory mixer
Capacity (t/h)	300	400	500	600
The aggregate silo volume m3	3×12	4×12	4×12	4×15
Max. aggregate size(mm)	≤60
Accuracy of batching (%)	Aggregate ±2、cement ±1、water ±1
Feeding height (m)	3.9	4.1	4.1	4.5
Discharging height (m)	3.5	3.5	3.5	3.8
The speed of mixer	632r/min	632r/min	632r/min	632r/min
Total power (kw)	95	105	120	140
1. Total power does not include the screw conveyor. 2. The quantity and volume of hopper can be designed according to customers’ request; 3. Any change of technical data should not be advised additionally;
