Related Concrete Equipment -

Wheel Loader

Type:

Wheel Loader

Characteristic:

Wheel loader

Model:

ZL Series

Type:	Wheel Loader
Characteristic:	Wheel loader
Model:	ZL Series

Product characteristics

Wheel loader, which belong to series of engineering machinery, were designed and developed by our company and professional institutes and colleges, we referenced and absorbed structure characteristics and advanced technology from foreign and domestic machinery according to the concrete demand of customers.
Wheel loader, which belong to series of engineering machinery, were designed and developed by our company and professional institutes and colleges, we referenced and absorbed structure characteristics and advanced technology from foreign and domestic machinery according to the concrete demand of customers.
1. Powerful engine that saves labor and energy.

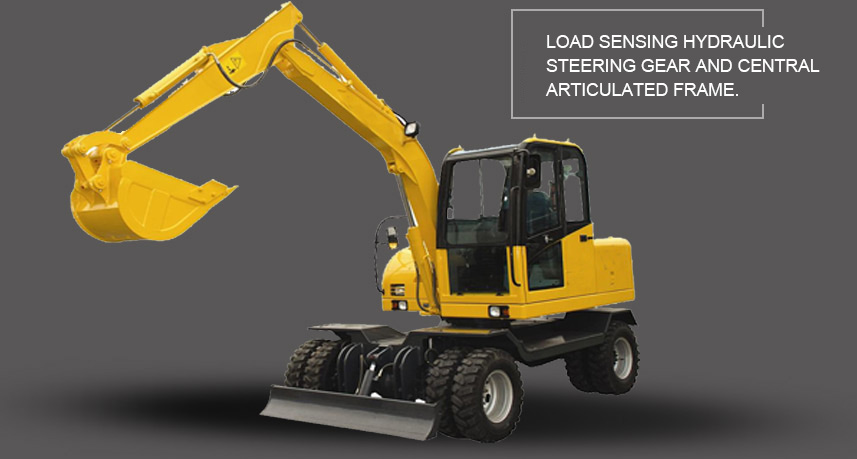

2. Load sensing hydraulic steering gear and central articulated frame.
3. Single pipe type hydraulic 4-wheel brake.
4. High-quality tire operating a long time in various environment.
5. High degree of safety for the cab, large space.

Model parameters

Model	ZL-18	ZL-20	ZL-30	ZL-32
Max dumping height	2700mm	3200mm	3250mm	3250mm
Max dumping distance	760mm	1100mm	1200mm	1200mm
Rate Weight(kg)	1800	2000	3000	3000
Bucket capacity(m3)	0.5-0.6	1.03	1.7	1.3
Distance between axles	2000mm	2140mm	2760mm	2760mm
Tread	1400mm	1480mm	1800mm	1800mm
Overall dimensions(LWH)	510017202700	585025502700	510017202700	645020902930
Engine model	LION LN490KC	WEICHAI4102	DEUTZ TD	4108
Rated power	39KW	47KW	135KW	83KW
Working pressure	16Mpa		27.5Mpa	27.5Mpa
Max flux	50ml/r		100ml/r	100ml/r
Total weight	3000kg		9500kg	6000kg
Grade ability	25%		25%	25%
Min rotary radius		4600mm	5700mm	5700mm
Time	7s	9s	11s	11s
Max walking speed	24km/h	24km/h	40km/h	40km/h
Max. breakout force	23kn	32kn	138kn	138kn
