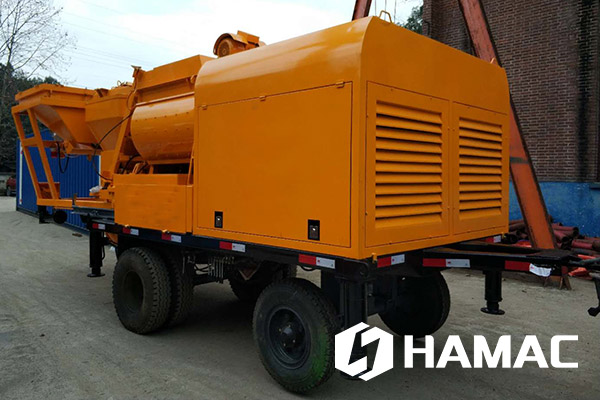

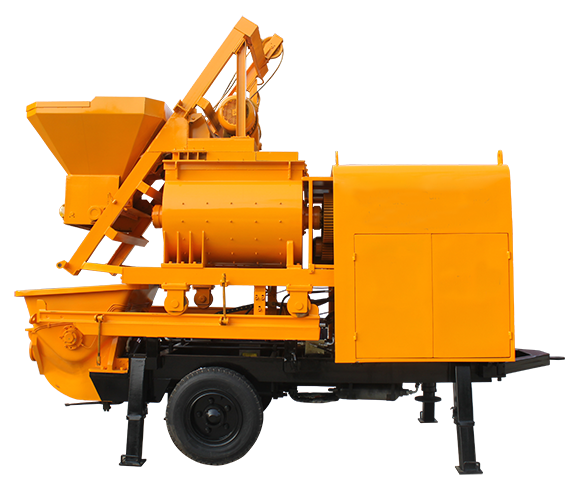

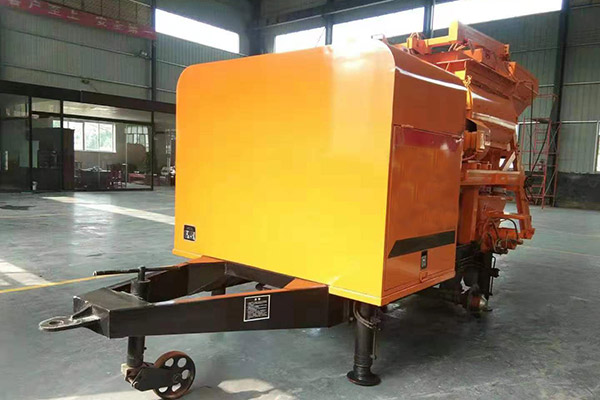

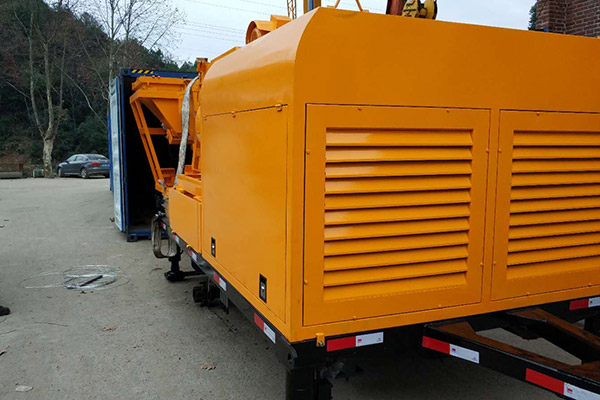

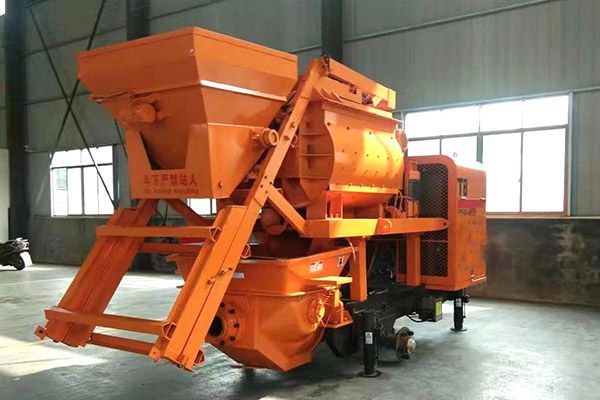

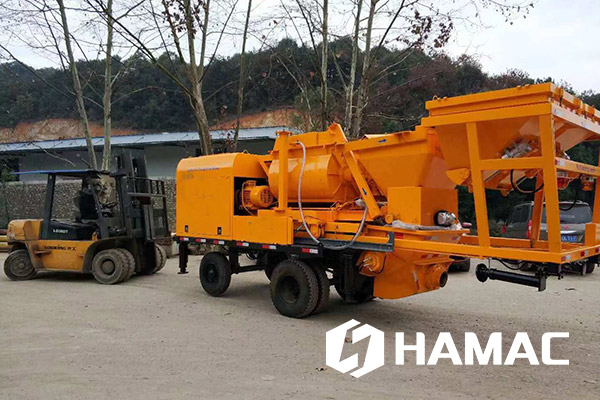

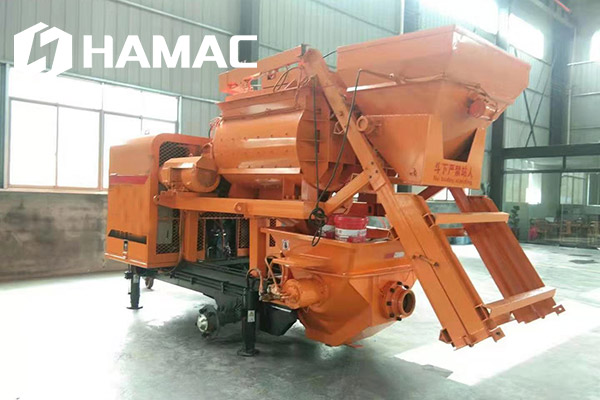

HBT25-L1 Concrete Mixer Pump

Type:

Electric Concrete Mixer Pump

Characteristic:

Electric power

Model:

HBT25-L1

Type:	Electric Concrete Mixer Pump
Characteristic:	Electric power
Model:	HBT25-L1

Product characteristics

HBT25-L1 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.

1. Electric driven, it is suitable for the working sites which can provide power supply;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
4.PLC controlled, work stable, working life longer;
5. Compact design, the concrete mixer can slide on the railway.

Model parameters

HBT15-L1 Electric Concrete Mixer Pump
Parts Name/Parameters		Parts Specification
Models		HBT25-L1
Power	Power supply model	Local electricity 3P
Power	Electric Component	Siemens/Schneider/Omron
Mixing System	Mixer	JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
	Mixing Motor	18.5kW
	Hoist Motor	5.5kW
	Submersible Pump	0.75kW
	Max. Theoretical Mixing Output	25m³/h
Pumping System	Main Motor	37KW
	Motor Rated Speed	1480 RPM
	Mian Hydraulic Oil Pump	KAWASAKI K3V112
	Double Gear Pump	25&16
	Valves	overflow and directional valves, OM, Italy brand
	Main Oil Cylinder	Φ100Φ701000mm
	Delivery Cylinder	Φ200*1000mm
	S Valve	Φ200mm
	Cutting Ring	Φ200mm
	Glass Wear Plate	Φ200mm
	Max. Theoretical Pumping Output	40m³/h
	Outlet Pressure	8Mpa
	Hydraulic System Type	Open circuit
	Motor Rated Voltage	Customized
	Max. Aggregate Size	Pebble:40mm Aggregate:30mm
	Delivery height and horizontal distance	70m/300m
	Hydraulic Oil Tank Volume	200L
	Concrete Outlet Diameter	Φ180mm
	Hopper Capacity × Filling Height	6001400 (Lmm)
	Machine Size(LxWxH)	510022002450 mm
	Total Weight	7000kgs
	Tyre Size	700R16
	Towing Speed	Max. 8km/h

Concrete mixing pump truck

JS500 Twin Shafts Concrete Mixer with pump

JS500 concrete mixer and pumping truck

concrete mix plant

cement block manufacturing machine

concrete placing boom price

paving stone machine

HBT25-L1 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.
