Product characteristics

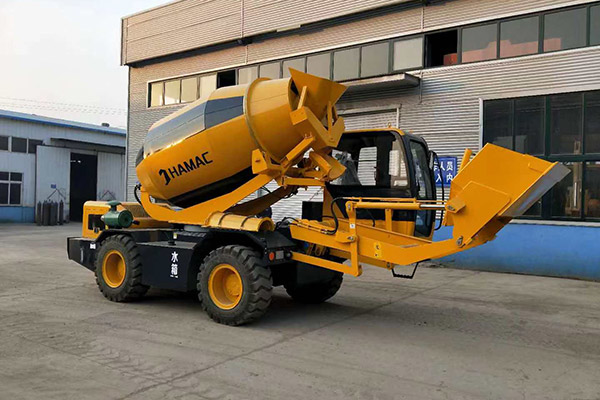

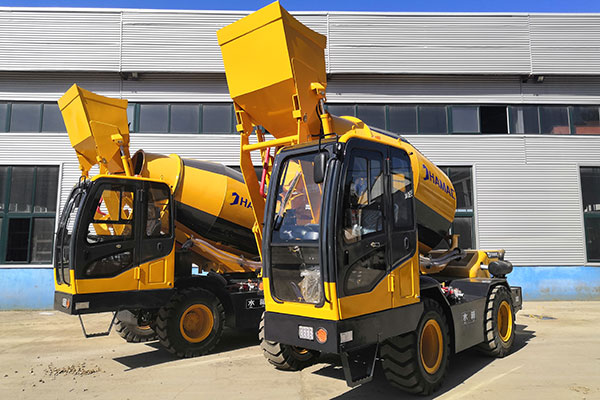

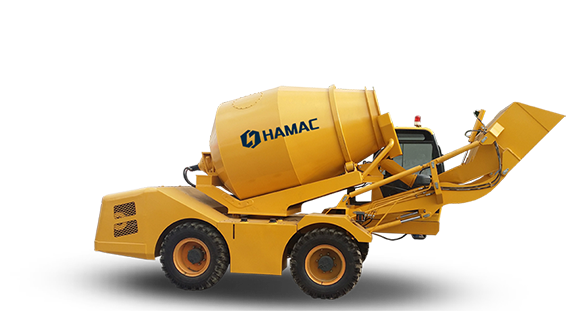

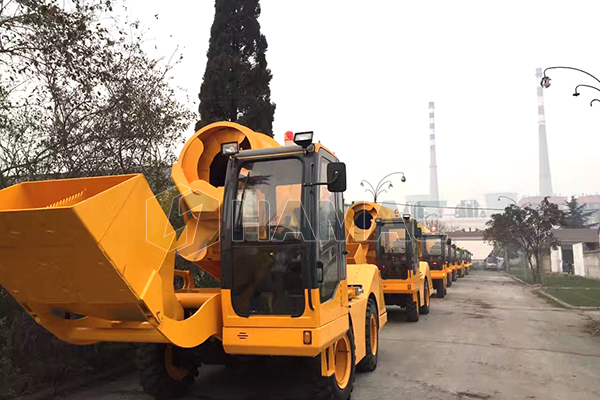

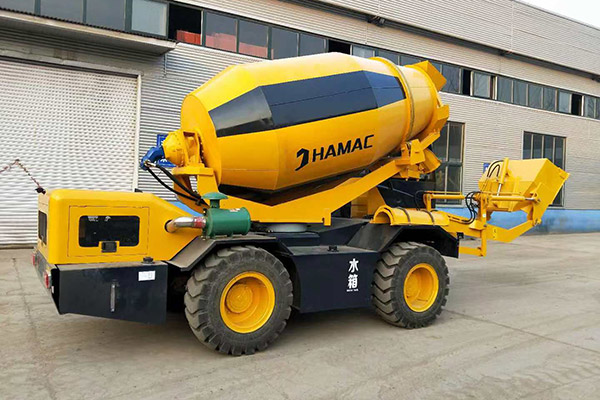

Self-loading concrete mixer is a mini-mobile concrete batching plant, it owns all the functions of concrete batching plant, loading, weighing, pumping, mixing, travel, discharge and washing. It can produce concrete independently and efficiently in remote areas.

It is easy to operate and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.

There is always a HAMAC unit that can do the job. Depending on the site conditions and which HAMAC models used, they can produce and pour from a few meters to your most desired amount of concrete per day.

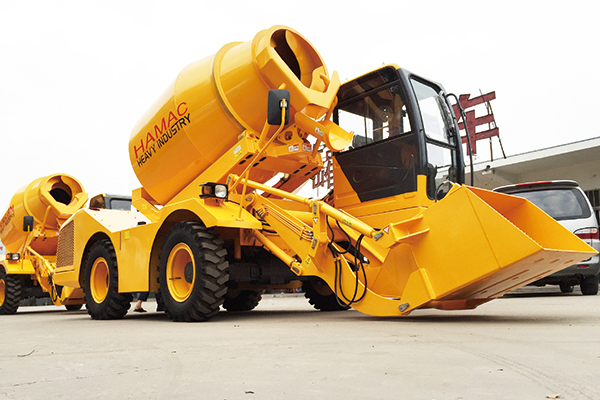

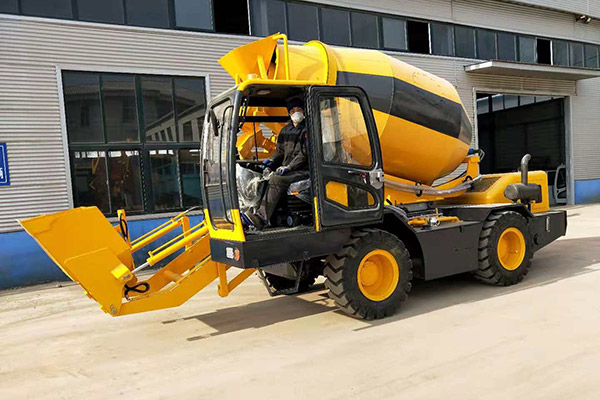

Load: Because of the specially designed hinge type hydraulic shovel, this mixer can load the material easily and accurately. There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement. All the ingredient can be fed into the mixing barrel from the top of shovel;

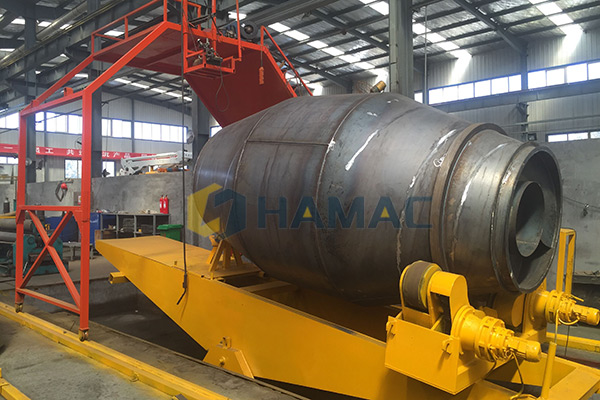

Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete (if required, we can equip the electronic weighing system)
Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. It can crawl on the 30 degree slope at a full load situation;
Discharging: Adopt the revolutionary solution. The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height, 4 directions.

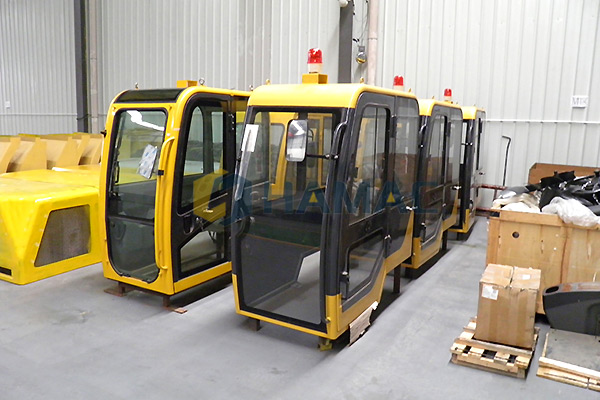

Operation: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.
Safety: This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.


Model parameters
Model Capacity of one batch (m3) Batches per hour Angle Of Drum Rotation (degree) Drive Way Power supply
HMC100 1 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC120 1.2 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC150 1.6 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC250 2.5 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC350A 3.5/3 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC350B 3.5/3 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine
HMC400 4.0 4 270 Full Hydraulic, Four-Wheels Drive Diesel engine

Note: Our products are being updated constantly, all rights reserved by HAMAC.

self loading Portable Batching mixer

self-loading concrete mixing plant

self-loading concrete mixers

Concrete Mixer Truck price

concrete pan mixer machine

ready mix concrete machine

front discharge concrete mixer trucks for sale

Self-loading mobile concrete mixer is an equipment combined with concrete mixer truck and concrete mixing station. Raw material loading, weighting, mixing and discharging all rolled into one. It could not only be used to transport the concrete but also produce the concrete at site.
