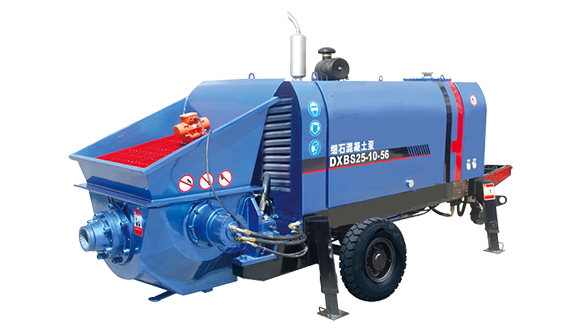

XBS/DXBS Fine Stone Concrete Pump

Type:

Fine Stone Concrete Pump

Characteristic:

Model:

xb/DXBS Series

Type:	Fine Stone Concrete Pump
Characteristic:	XBS/DXBS series products are a kind of mortar conveying equipments specially developed according to the characteristics of floor heating projects. They are extensively applied in the large-area and highly efficient construction of fine stone concrete
Model:	xb/DXBS Series

Product characteristics

XBS/DXBS series products are a kind of mortar conveying equipments specially developed according to the characteristics of floor heating projects. They are extensively applied in the large-area and highly efficient construction of fine stone concrete or mortar stuffing in floor heating project. Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.
XBS/DXBS series products are a kind of mortar conveying equipments specially developed according to the characteristics of floor heating projects. They are extensively applied in the large-area and highly efficient construction of fine stone concrete or mortar stuffing in floor heating project.

Concrete Pumps

XBS/DXBS series products are also widely used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.

The inner diameter of conveying pipe has developed into φ100 based n formerφ80 so that XBS/DXBS series products can convey concrete with diameter no more than 30mm, which makes XBS DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.

Model parameters

Item		Unit	Motor engine concrete pump				Diesel engine concrete pump
			XBS25-12-33		XBS30-13-40	XBS40-13-48	DXBS25-12-56	DXBS30-13-56	DXBS40-13-56
Max. theoretic delivery volume		M3/h	25		30	40	25	30	40
Max. outlet pressure		Mpa	12		13	13	12	13	13
Main oil pump volume		Ml/r	-		-	-	63	80	112
Max. aggregate diameter		mm	≤30(≤20)
Cylinder diameter*stroke		mm	φ140×800	φ140×1000		φ140×1000	φ140×1200	φ140×1200		φ140×1200
Power		Kw	30		40	48	56	56	56
Inner diameter of delivery pipeline		mm			φ100（φ80）	φ100（φ80）	φ100（φ80）	φ100（φ80	φ100（φ80）
Overall		mm	4600×1500 ×1550		4600×1500 ×1550	4600×1500 ×1550	4600×1500 ×1550	4600×1500 ×1550	4600×1500 ×1550
Weight		kg	2000		2100	2100	2300	2450	2450
Max. theoretic delivery distance	Horizontal	m	400		500	600	350	450	550
	vertical	m	140		160	180	140	160	180
