Floor climbing Hydraulic Concrete Placing Boom

Type:

Floor climbing Hydraulic Concrete Placing Boom

Characteristic:

It can be installed on the floor or elevator shaft

Model:

HGY Series

Type:	Floor climbing Hydraulic Concrete Placing Boom
Characteristic:	It can be installed on the floor or elevator shaft
Model:	HGY Series

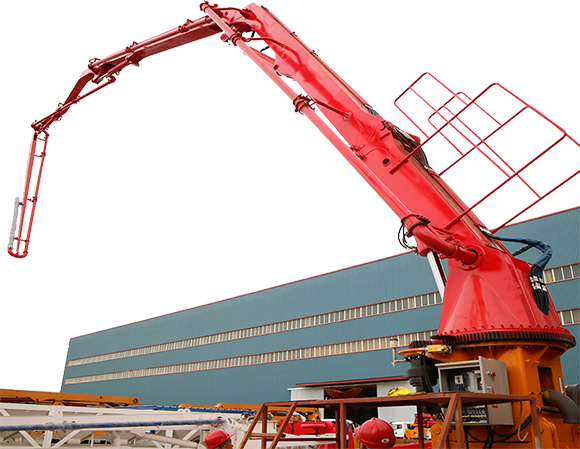

Floor climbing Hydraulic Concrete Placing Boom

Product characteristics

Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.

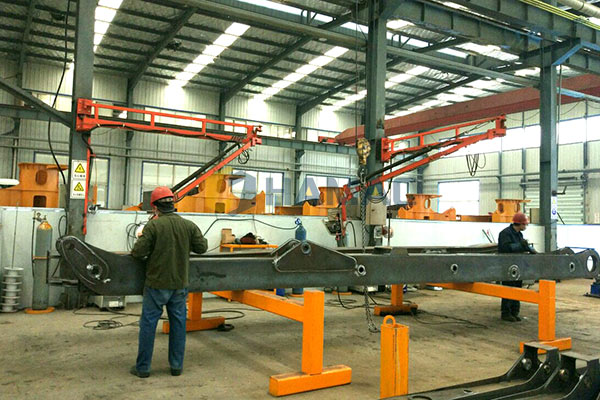

1. Horizontal placing radius 28-32 meters (exclude 3m hose), full hydraulic drive;

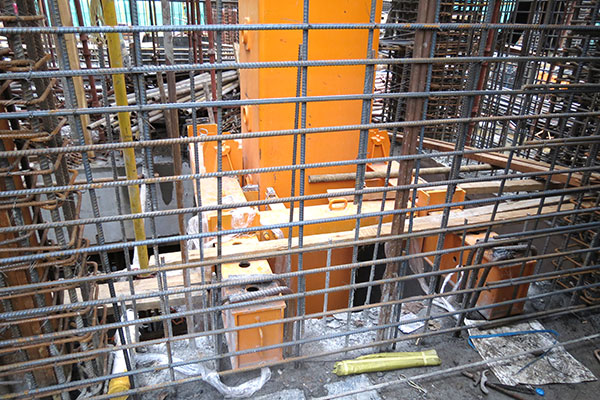

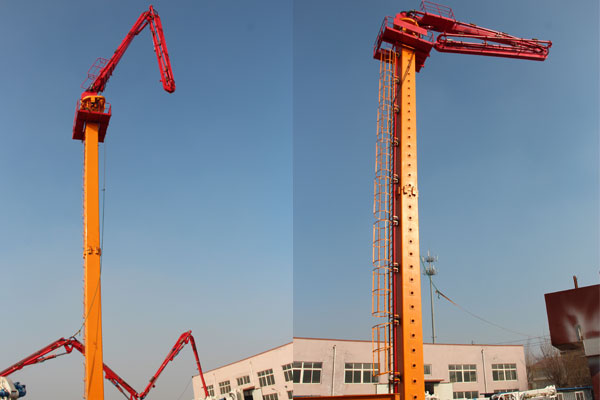

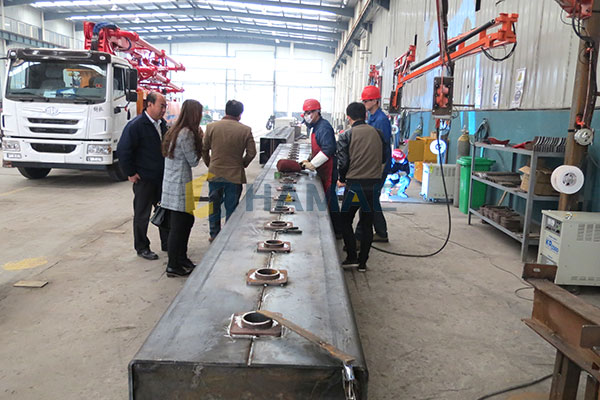

2. The concrete placing boom can be anchored to the floor with initially prepared holes when working, and it can be lifted by its climbing system. One lifting can meet the need for two floors concrete placement; If the floor area is too large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost;

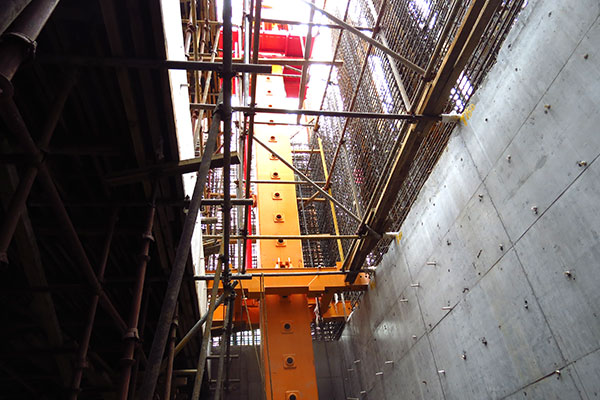

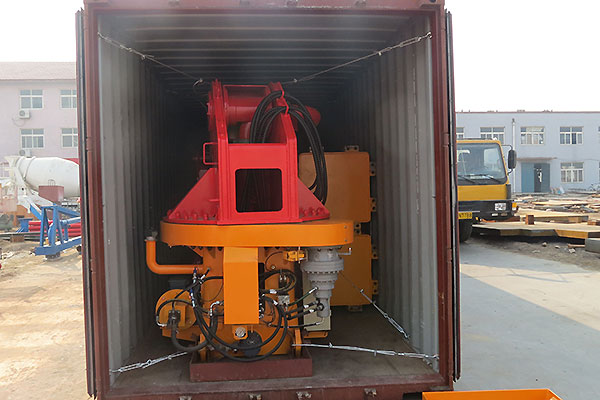

3. Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or elevator shaft.

Model parameters

Model				HGY24	HGY28	HGY32
Delivery pipe dimension (outside diameter×thickness) (mm)				φ133×4.5	φ133×4.5	φ133×4.5
Delivery hose dimension (inside diameter×length) (mm)				φ125×3000	φ125×3000	φ125×3000
Radius of placing boom(m)				24	27.7	31.7
Stationary height(to the join between the end of the boom and swivel table(m)				22.7	22.7	22.7
Three hydraulic foldable arms	1st section			10.5m	10.5m	14.5
	2nd section			9.2m	9.2m	9.2m
	3rd section			8.0m	8.0m	8.0m
Boom articulation	1st section			-4.2°～+82.5°	-4.2°～+82.5°	0-82.5°
	2nd section			O°～180°	O°～180°	O°～180°
	3rd section			O°～180°	O°～180°	O°～180°
Slewing range(°)				360	360
Power of motor(kw)				11	11	15
Pressure of hydraulic system (MPa)				26	30	30
Type of hydraulic oil				AW68	AW68	L-HM 68
			Climbing	3.0
The min．Interval of climbing			Placing concrete	6.0
Frame (m)			Resting
Mode of operation				1． cable remote control 2． radio remote control
power				380V/50Hz
wind speed		Placing concrete		≤60 km／h
		Climbing		≤28 km／h
working temperature				O～60℃

concrete placing boom price

concrete placement boom

concrete boom pump truck

Concrete Placing Equipment

fully automatic block making machine

pumped concrete prices

gas powered concrete mixer for sale

JS series twin-shaft concrete mixer

Stationary concrete placing boom: distributing equipment for concrete pouring specially designed and produced for engineering construction of railway beam field, nuclear power and so on; mobile concrete placing boom, of three sections of folding arm in the “Z” shape, can be rotated all around, pitched and folded, its amplitude can be changed, realizing three-dimensional and full range of pouring within the length of cantilever crane, leaving no dead space, also, it can easily realize concrete pouring in all sorts of construction operation, including wall, tube, column and pile.
