Type: | Skid Steer Loaders |
Characteristic: | Remote Controlled |

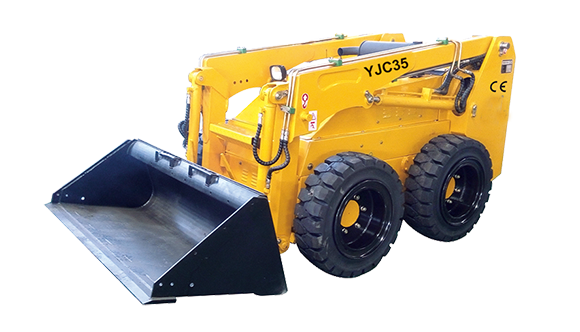

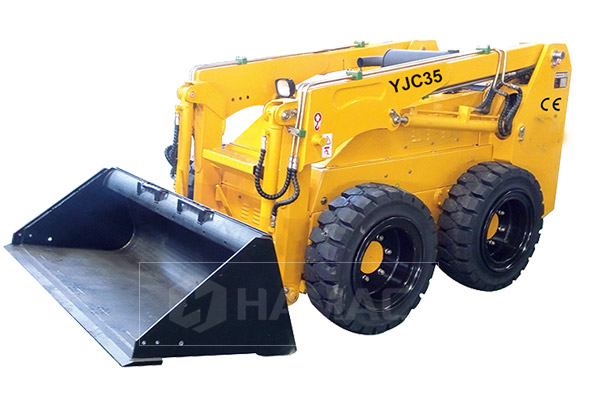

Model: | YJC35/YTS100 |
Model | YJC35 | YTS100 |
Operating Load (kg) | 500 | 1200 |
Max. Speed (km/h) | 10 | 12/18 |
Hydraulic flow (L/min) | 60 | 88 |
Tire Model | 8.5-15 | 320*84 |
Rated Power (kW) | 29.5 | 74 |
Fuel tank Volume (L) | 60 | 90 |
Self Weight (kg) | 2300 | 4500 |
Bucket Volume (m³) | 0.3 | 0.55 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
Structure Data:
Main data/ Model | YJC35 | YTS100 |
Overall operating height (mm) | 2825 | 4070 |
Height to bucket hinge pin (mm) | 2200 | 3150 |
height to top of cab (mm) | 1355 | 2160 |
Height to bottom of level bucket(mm) | 2033 | 2983 |
Overall length without bucket(mm) | 2300 | 3000 |
overall length with bucket(mm) | 2950 | 3700 |
Dumping angle at maximum height(° ) | 40 | 40 |
Dumping height(mm) | 1525 | 2450 |
Dumping reach(mm) | 790 | 700 |
Rollback o bucket on ground(° ) | 30 | 30 |
Rollback of bucket at full height(° ) | 104 | 104 |
Wheelbase(mm) | 897 | 1500 |
Ground clearance(mm) | 140 | 200 |
Angle of departure(° ) | 20 | 20 |
Front turning radius without bucket(mm) | 1098 | 1365 |
Front tuning radius(mm) | 1760 | 2200 |
Rear tuning radius(mm) | 1296 | 1742 |
Rear axle to bumper (mm) | 964 | 938 |
Tread width, centerline to centerline (mm) | 1080 | 1654 |
Width (mm) | 1350 | 1994 |
Bucket width (mm) | 1400 | 2030 |
