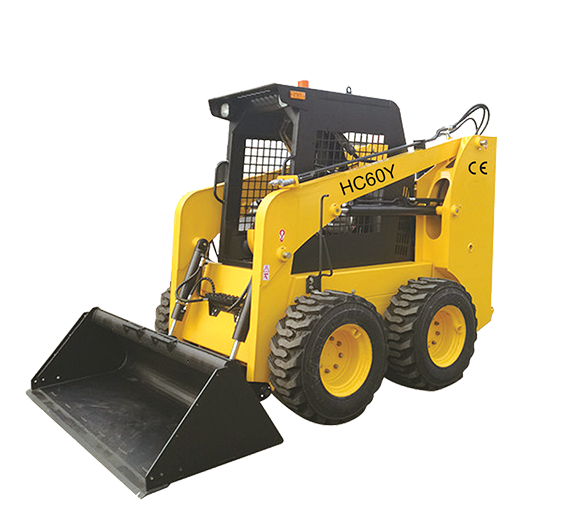

Y series Wheeled Skid Steer Loader

Y series Wheeled Skid Steer Loader
Type:
Skid Steer Loaders
Characteristic:
Easy to operate and efficient
Model:
Y Series Wheeled
Type: Skid Steer Loaders
Characteristic: Easy to operate and efficient
Model: Y Series Wheeled

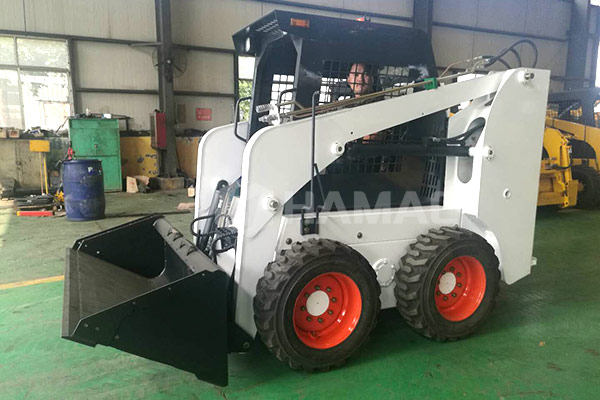

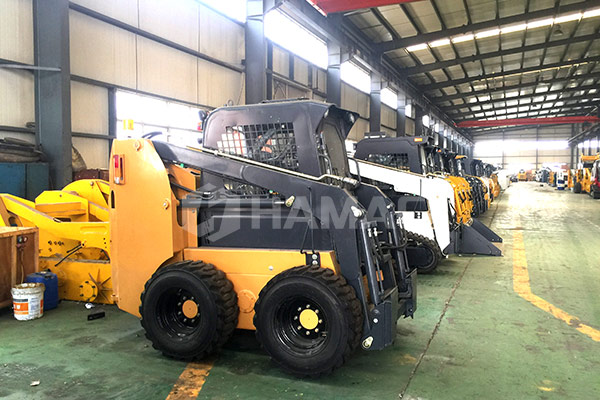

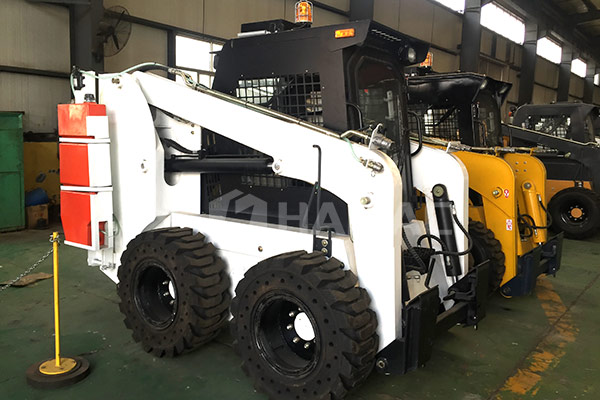

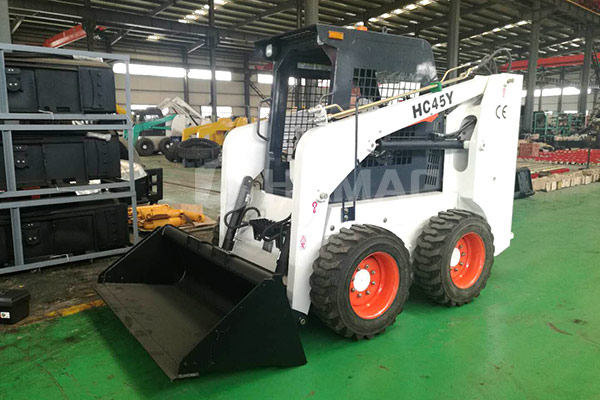

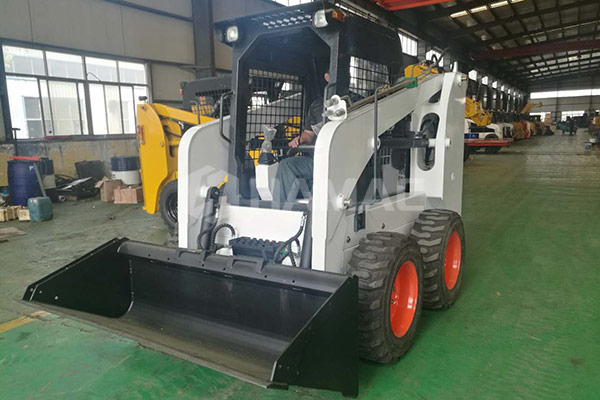

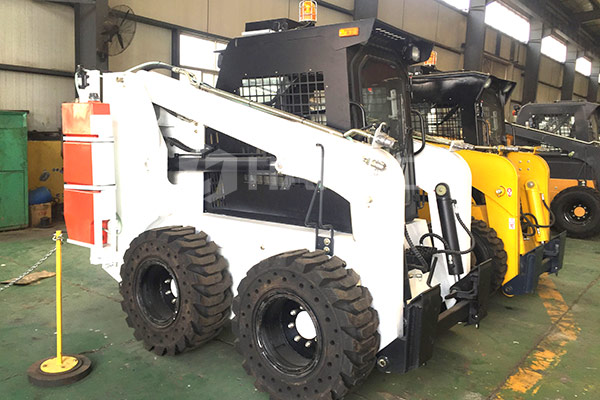

Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Wheeled Skid Steer Loader
Product characteristics
Y series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

1. Y series product is equipped with manual servo system, easily to be operated, higher work efficiency;
2. Simple structure, high cost performance, lower maintain cost, is a classic product in the overseas market;
3. This series product range is JC45Y, JC60Y and JC65Y. Domestic brand engine and international brand engine as optional.

Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Mixer
Mixer
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe

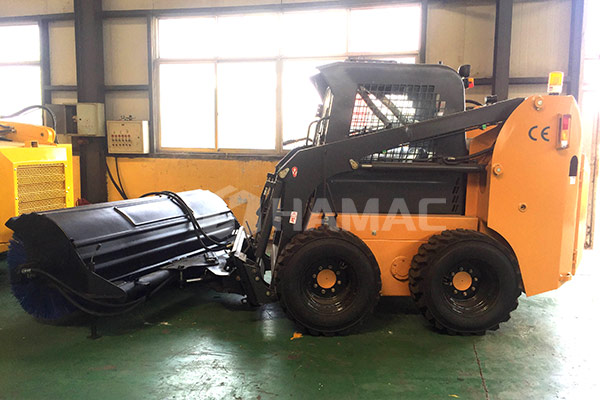

Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade

Model parameters
Model HC45Y HC60Y HC65Y
Operating Load (kg) 700 800 950
Max. Speed (km/h) 12 12 12
Hydraulic flow (L/min) 62.5 75 75
Tire Model 10-16.5 12-16.5 12-16.5
Rated Power (kW) 37 45 55
Fuel tank Volume (L) 70 80 80
Self Weight (kg) 2700 2800 3000
Bucket Volume (m³) 0.4 0.5 0.5

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/Model HC45Y HC60Y HC65Y
Overall operating height (mm) 3980 4000 4000
Height to bucket hinge pin (mm) 3080 3100 3100
height to top of cab (mm) 2140 2160 2160
Height to bottom of level bucket(mm) 2913 2933 2933
Overall length without bucket(mm) 2640 2750 2750
overall length with bucket(mm) 3420 3490 3490
Dumping angle at maximum height(° ) 40 40 40
Dumping height(mm) 2380 2400 2400
Dumping reach(mm) 700 750 750
Rollback o bucket on ground(° ) 30 30 30
Rollback of bucket at full height(° ) 104 104 104
Wheelbase(mm) 991 1085 1085
Ground clearance(mm) 185 205 205
Angle of departure(° ) 20 20 20
Front turning radius without bucket(mm) 1168 1198 1204
Front tuning radius(mm) 1958 1958 2030
Rear tuning radius(mm) 1630 1728 1706
Rear axle to bumper (mm) 1108 1208 1082
Tread width, centerline to centerline (mm) 1450 1500 1500
Width (mm) 1720 1880 1880
Bucket width (mm) 1740 1880 1880
